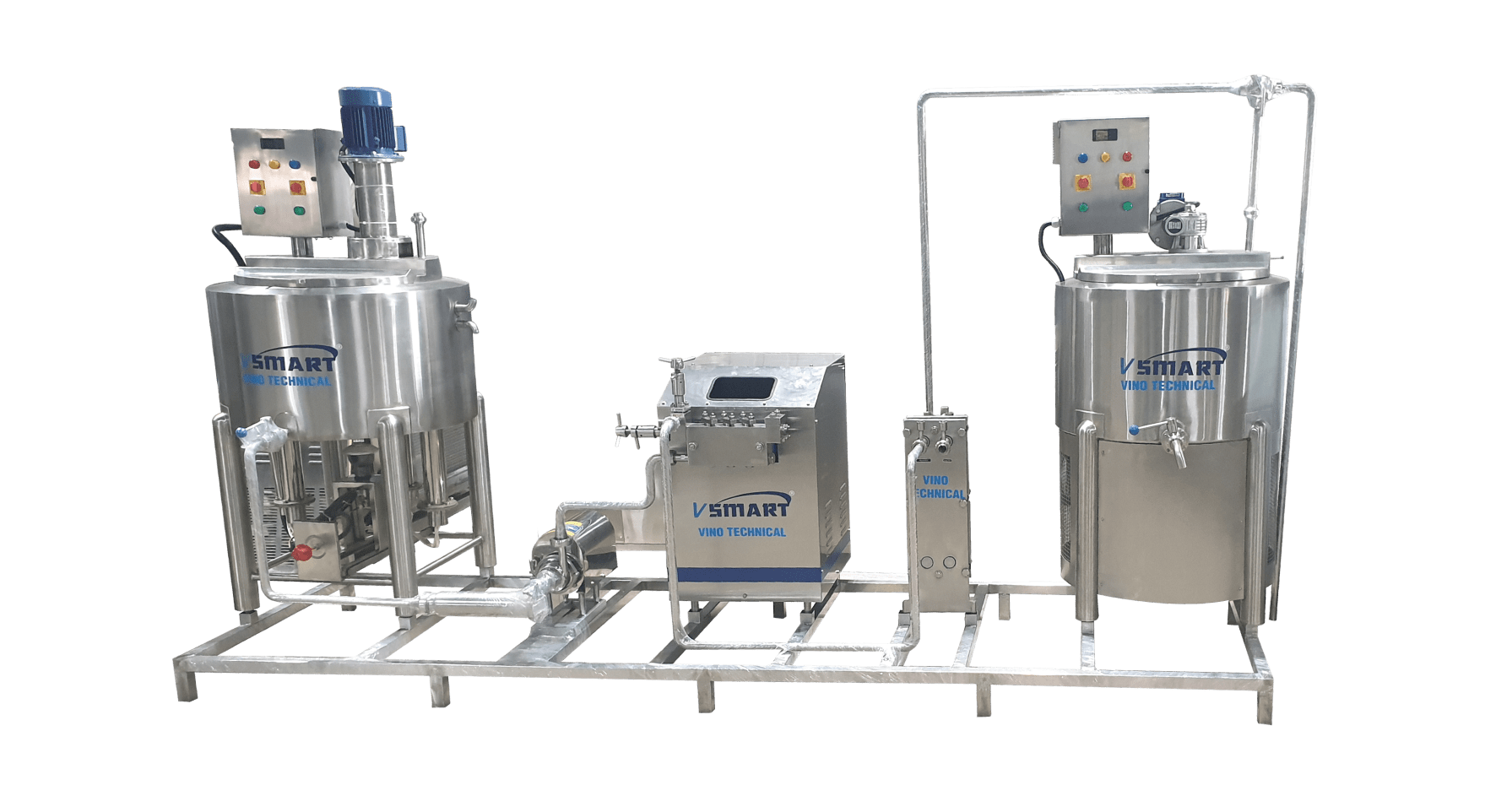

Paneer Plant

Vino Technical Services is one of the pioneered organizations in manufacturing Paneer Plant. We are highly engaged in offering a unique range of Paneer Plant with the capacity ranging from 100 Liters to 5000 Liters. We manufacture using the high-end technology at our well established production unit.Our VSmart’s Paneer Plant is widely appreciated by our valuable clients for its easy to operate and low maintenance features.

We build our products as per the industry norms and, We analyze the requirements for each customer and configure as per their requirements.We at Vino Technical Services offers wide range of products with defined quality standards and, we assure our clients that all our provided range is excellent in terms of durability.

Features:

  • Reliable performance

  • High in Efficiency

  • Sturdiness

  • Available at Affordable Cost


HTST PASTEURIZER - CAPACITY 100 TO 1000 LTRS

An HTST pasteurization is a process where Pasteurization destroys microorganisms in Juice products in order to reduce bacterial content and deliver a safe product to the public. HTST is an acronym for High-temperature short-time pasteurization which uses stainless steel heat exchange plates where product flows on one side while the heating media flows on the opposite side to raise juice temperatures. Our Vsmart’s HTST pasteurizer is accurately designed by our expertise at our technically sound production unit making use of quality-tested components as per the set industry norms with the state of the art technology, Offer customized tailored solutions for our clients as per their requirements. We are engaged in offering a qualitative range of High-temperature short time pasteurizer with a capacity ranging from 100 to 1000 liters for Juice Plant.

  • 1. Low maintenance and easy to install
  • 2. High tensile strength
  • 3. Corrosion-resistant
  • 4. Optimum functionality

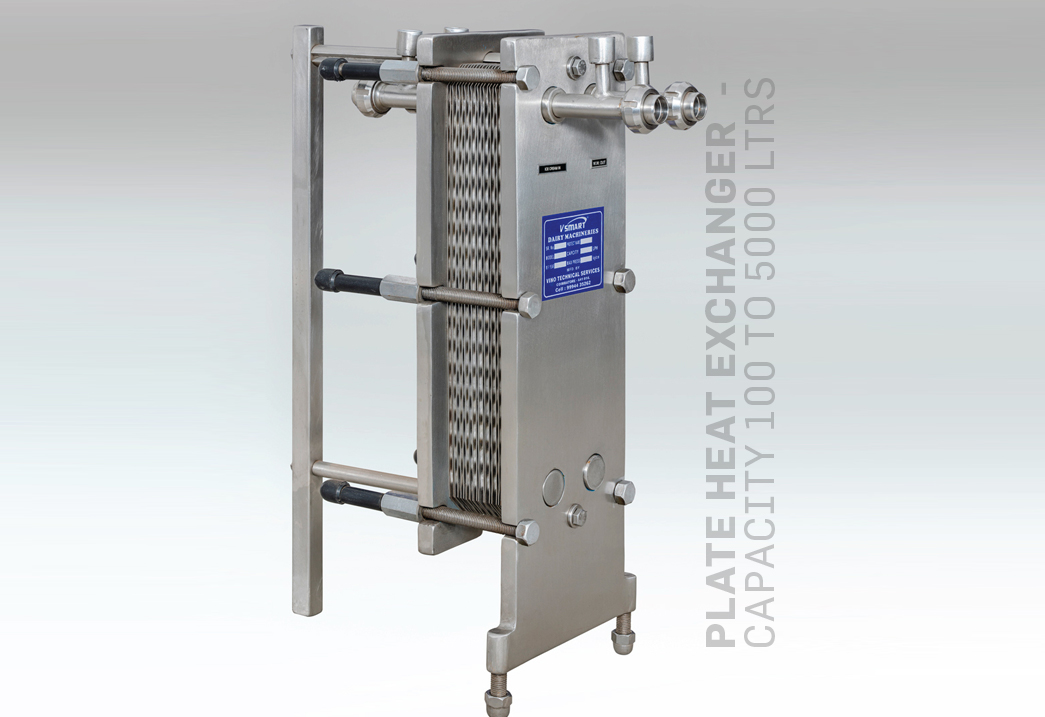

PLATE HEAT EXCHANGER - CAPACITY 100 TO 5000 LTRS

Our Vsmart’s Plate Heat Exchanger is accurately designed by our expertise at our technically sound production unit making use of quality-tested components as per the set industry norms with the state of the art technology. We at Vino Technical Solutions provide individualized solutions for our clients as per their specifications. We are engaged in offering a qualitative range of Plate Heat Exchanger with a capacity ranging from 100 to 1000 liters. The Plate Heat Exchanger (PHE) is used for cooling the mix from 80 deg.c to 4 deg.c by well water and chilled water. A plate exchanger consists of a series of parallel plates which are placed on top of each other that allows the formation of a series of channels for fluids to flow between them. The space between two adjacent plates forms the channel for the liquids to flow. Inlet and the Outlet Valves at the corner of the plates allow hot and cold fluids through alternating channels in the exchanger so that a plate is always in contact with the hot fluid and the cold fluid on either side.

  • 1. Superior design
  • 2. Standard quality of inlet & outlet valves
  • 3. Outlet valves have SS 304 with SMS union
  • 4. Zig Zag crossed design plates SS 316
  • 5. High temperature rubber gasket is used

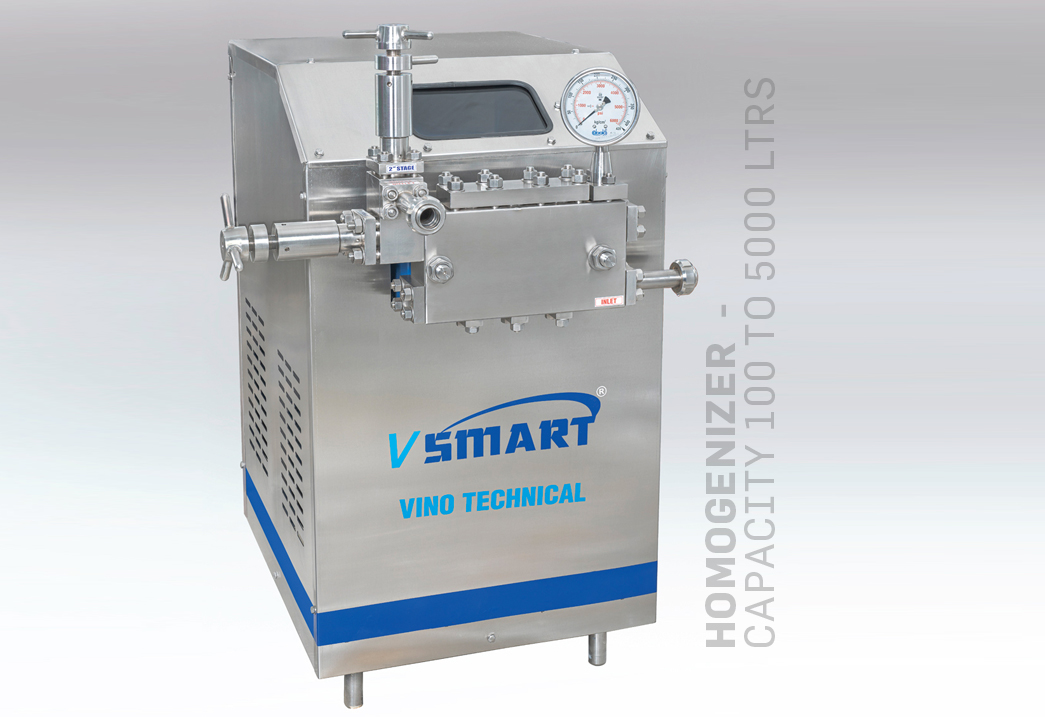

HOMOGENIZER - CAPACITY 100 TO 5000 LTRS

Vino Technical Services Homogenizer is accurately designed with the capacity ranging from 100 to 5000 Liters by our expertise at our technically sound production unit making use of quality-tested components as per the set industry norms with the state of the art technology. We at Vino Technical Solutions provide customized tailored solutions for our clients as per their requirements. Our Juice Homogenizers are available at economical prices and are manufactured as per the industry norms. A homogenizer is needed when a high efficiency of homogenization is required and the displacement pump forces the product under high pressure through a small adjustable gap between the valve & valve seat, uniformly dispersing solid particles. We are the renowned manufacturer, supplier and exporter of the world's best in class Juice Plant homogenizers.

  • 1. Two stage homogenization
  • 2. Three plunger method
  • 3. SS diaphragm type pressure gauge
  • 4. Special type SS hardening material for Homo valve & valve seat
  • 5. High strength steel eccentric shaft & connecting rod assembly
  • 6. High quality bearings and belts

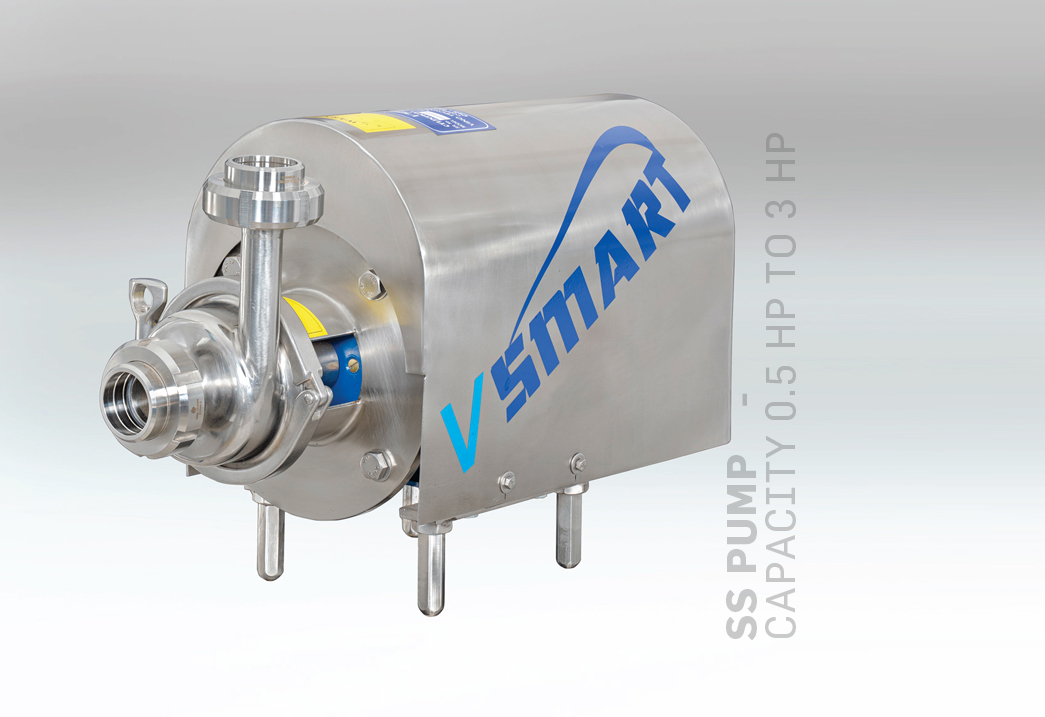

SS PUMP - CAPACITY 0.5 HP TO 3 HP

To ensure the best-class quality SS Pump for Juice plant without compromising the uniform mixture of dry and liquid ingredients requires optimal dispersion and operational efficiency.We are one pioneer in manufacturing SS Pump with the capacity range of 0.5 HP to 3 HP. The pump is used for transferring the mix from one place to another. Our expertise at Vino Technical Services assures SS Pumps are of superior quality and usefulness in nature. Within a short span of time, we are engaged in presenting an excellent grade of SS Pump and these pumps are manufactured using quality metal alloys, We are the prominent manufacturers and suppliers of SS pumps and ensure we provide best in class products to our customers by providing customized tailored solutions as per their requirements.

  • 1. Pump head SS 304
  • 2. Suction & discharge connecting type SMS union
  • 3. Single mechanical shaft seal
  • 4. Open type impeller installed
  • 5. Designed with 3 phase motor with foot cum flange
